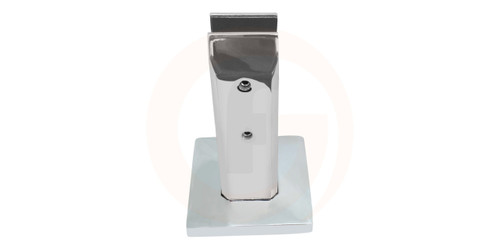

Deluxe Heavy Duty Balustrade Grade Spigot | 60 mm Heavy-Duty Profile | Premium 2205 Stainless

Premium Heavy Duty Base Plated Balustrade Grade Spigot 60 mm wide with 45 mm slimline face (Square Style).

The Ultimate Heavy-Duty Architectural Spigot for Glass Balustrades, Forged from Premium 2205 Duplex Steel

Engineered for the ultimate in safety and style for frameless glass installations, our premium Heavy Duty, base-plated spigot is the definitive Balustrade Grade choice for sophisticated frameless balustrades and serves as a superior choice for pool fencing projects in Australia. Its unique profile provides maximum structural integrity. Forged from premium 2205 Duplex stainless steel, this deluxe spigot offers superior strength and the highest level of corrosion resistance available, making it the ideal solution for the harshest coastal and poolside environments.

Key Features & Benefits

• Unmatched Durability: Forged from premium 2205 Duplex stainless steel, this Heavy Duty spigot offers significantly higher strength and corrosion resistance than standard 316-grade steel.
• Slim Face, Maximum Strength Profile: This spigot features a slimline 45 mm wide face for a minimalist, architectural look that enhances your view. This is supported by a substantial 60 mm side depth, providing exceptional rigidity and sideways strength for the glass panel.
• Dual-Purpose Tapered Top: The top edges are subtly tapered, serving as both an elegant design element and a crucial safety feature. This design complies with Australian 'no toe hold' requirements, helping to prevent climbing around pool fencing and balustrades.
• Superior Glass Security: Featuring a deep 120 mm throat, this spigot clamps a significant portion of the glass panel, providing exceptional grip and load distribution for a heavy-duty installation.
• Professional Mounting System: The base plate is engineered with four countersunk holes, allowing for flush-head fixings for a clean, professional finish.
• Versatile Glass Compatibility: Expertly designed to securely fit glass thicknesses from 12 mm to 17.5 mm. This makes it the perfect choice for robust 15 mm frameless balustrades and a superior, deluxe option for 12 mm glass pool fencing.

Available Finishes & Expert Recommendations

Recommended Finishes (Polished, Matt Black & Matt White): Choose from our three premium, low-maintenance finishes. The mirror-like Polished finish offers a classic, brilliant shine, while Matt Black and Matt White provide a contemporary, powder-coated look. All three are excellent choices for creating a stunning architectural feature.

Satin Finish (Requires Maintenance): While offering a traditional non-polished stainless look, the fine grain of a satin finish spigot can trap microscopic particles in coastal or poolside environments. To prevent surface discolouration ('tea staining'), this finish requires a regular, diligent cleaning schedule.

Versatile Fixing Options

The engineered base plate offers professional-level installation flexibility, subject to your engineer's approval:

1. Flush Fixing (No Cover Plate): Use the four countersunk holes with appropriate countersunk fixings to achieve a completely flush, minimalist look.

2. Standard Fixing (With Cover Plate): When using the included 22 mm high cover plate, the countersunk feature can be ignored, allowing the use of any engineer-approved fixing with a washer for maximum clamping force.

Specifications

• Style: Square Style (as opposed to Round)
• Profile: Heavy-Walled Rectangular
• Profile Dimensions: 45 mm Wide Face x 60 mm Side Depth
• Material: Premium 2205 Duplex Stainless Steel
• Grade: Balustrade Grade, Extreme Marine Grade
• Finishes Available: Polished, Matt Black, Matt White, Satin
• Fixing Method: 4 x Countersunk Holes for Base Plate
• Clamping Throat Depth: 120 mm
• Glass Thickness: 15 mm - 17.5 mm
• Included: Spigot, 22 mm High Cover Plate, Recessed Friction Plates & Gaskets

Fence Guru Trade Tip: Core Drilling Balustrade Spigots

These professional-grade balustrade spigots are larger than standard glass pool spigots. Each core drill spigot measures 60 mm × 45 mm with a diagonal of about 75 mm corner to corner. For a FAST & EASY install and to avoid frustration or re-drilling, give yourself a little extra clearance.

The problem: A 76 mm core drill bit is too tight. There’s no room to adjust or fill around the spigot once it’s set.

The solution: Use an 83 mm or 89 mm core drill bit. That small gap all around makes alignment easy, saves time, and ensures a solid finish when filled with non-shrink grout or epoxy.
